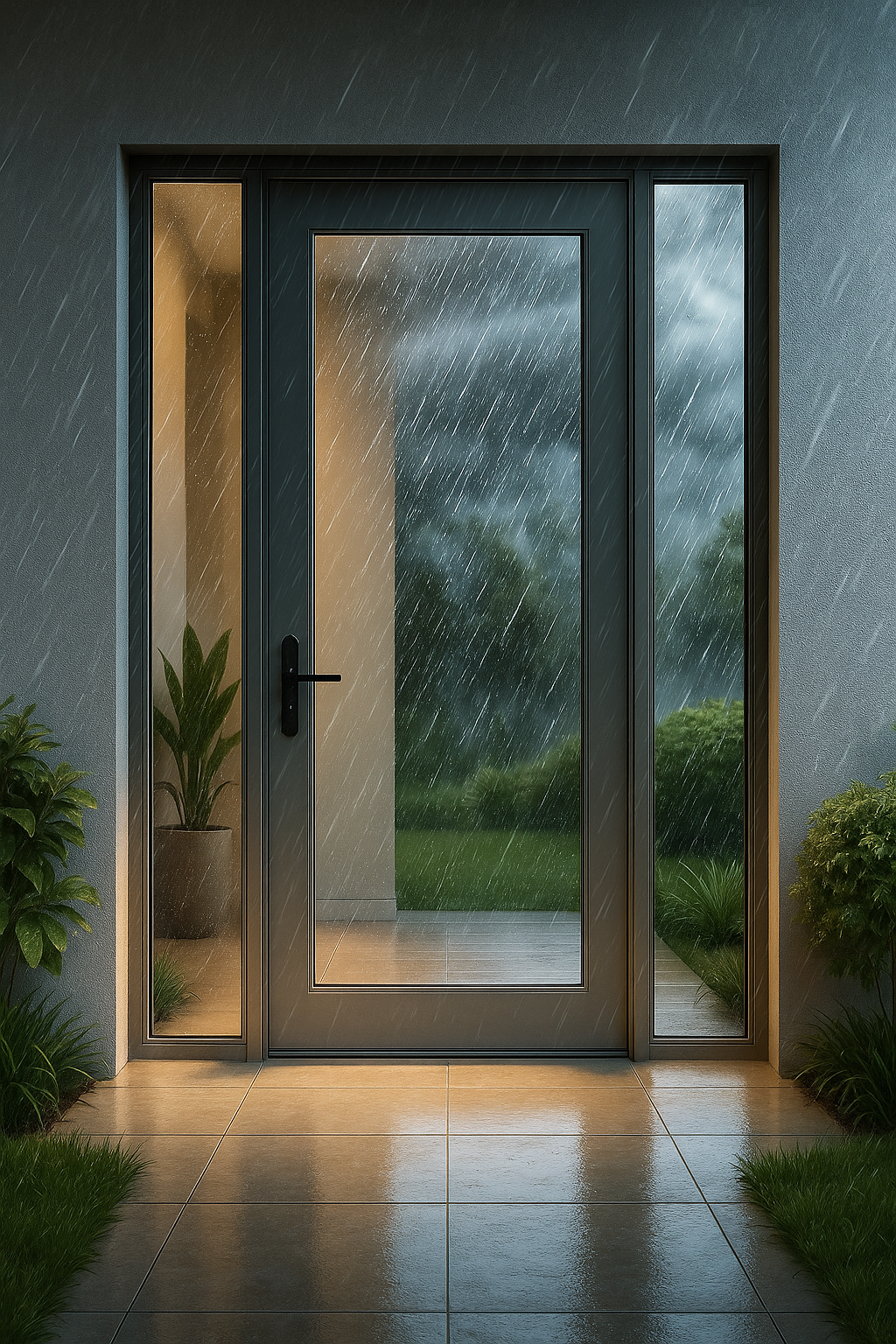

Sunny Lux is an aluminum swing door with narrow vertical stiles and a fully mitered frame. Its thermally broken construction, insulated glass and four-point lock bring several practical features together in a clean entrance design.
Available as a single or double door with inswing or outswing operation, Sunny Lux is intended for residential entrances and selected commercial applications. Impact-resistant glass is available as an option; the required glass and performance should be confirmed for each project.
Sunny Lux combines a narrow aluminum profile with insulated glazing and a choice of door configurations. The thermally broken frame helps limit heat transfer, while the selected glass contributes to the performance of the complete door.
The adjustable jamb allows up to 1/4 inch of adjustment on each side during installation. Opening dimensions, swing direction and glazing should be reviewed before ordering.
Sunny Lux offers a slim entrance design with choices in door size, swing direction and glazing. These details can be selected around the opening and the needs of the project.
Slim profiles and minimalist lines that integrate seamlessly into contemporary architecture

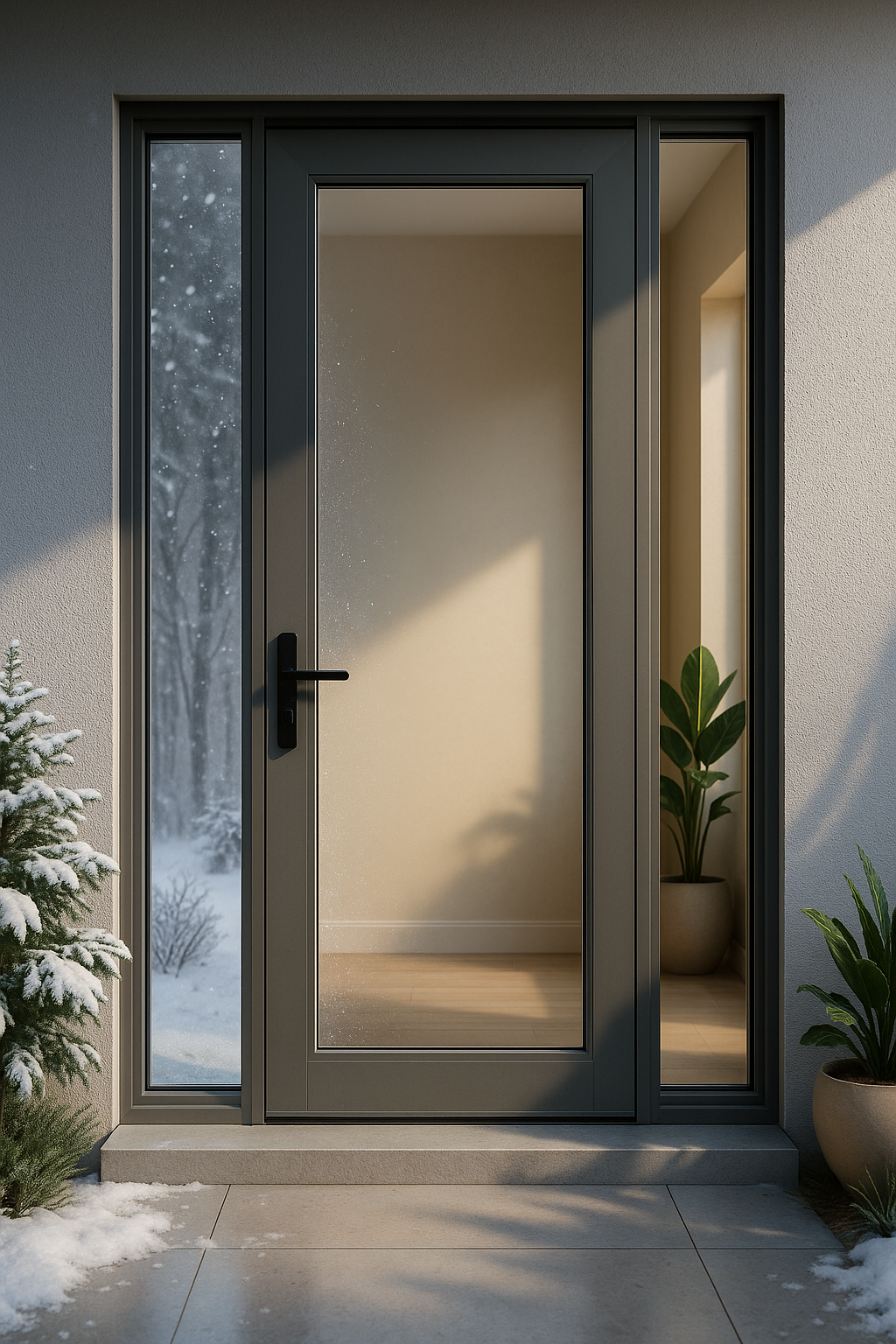

Thermal break technology that enhances insulation and reduces energy costs.
High-quality seals ensure protection against air and water infiltration
Available in single or double panel, with inswing or outswing operation, plus adjustable frame.

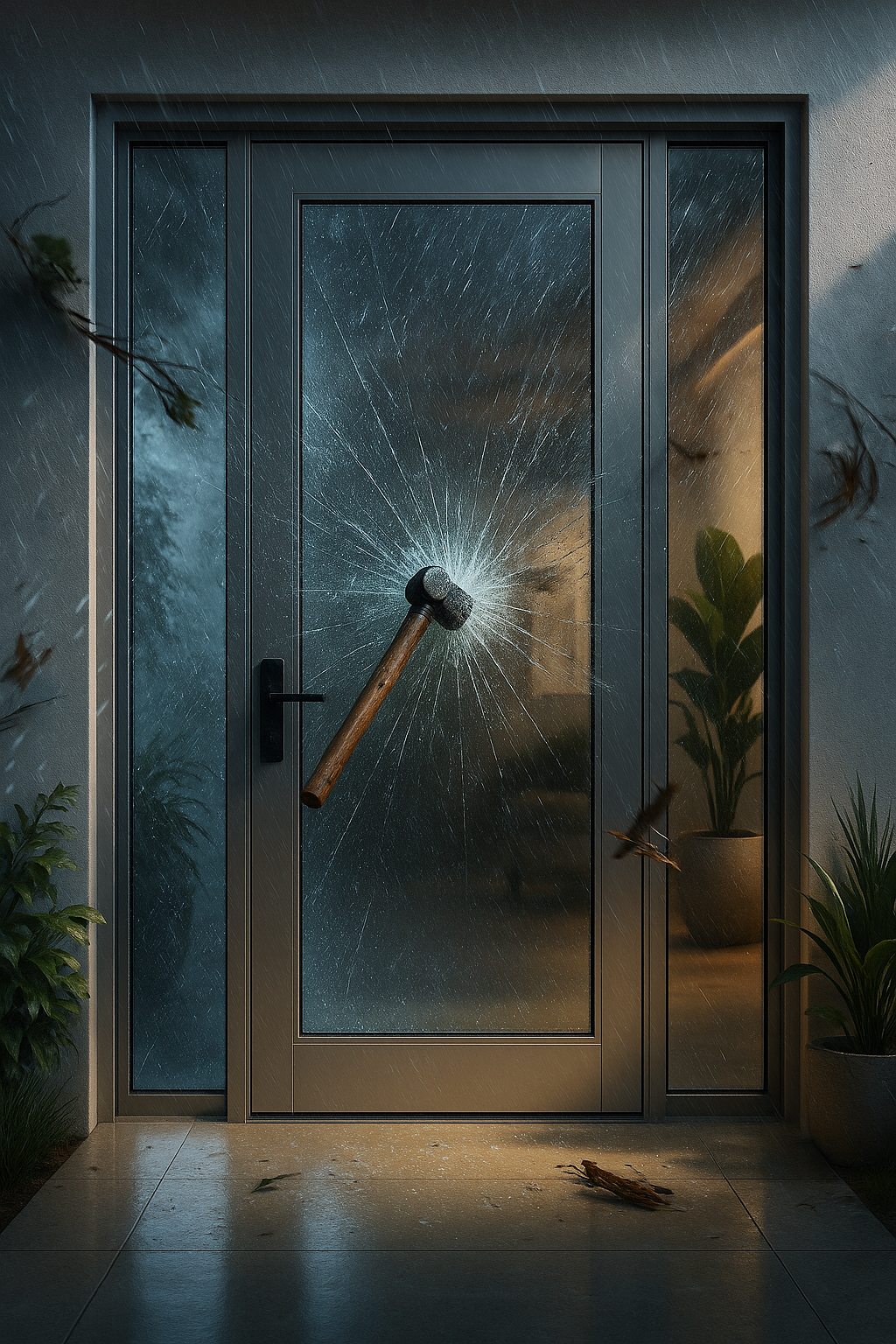

Insulated glass in different finishes and optional hurricane/impact-resistant glass.
AAMA/WDMA/CSA 101/I.S.2/A440 - approved
AAMA 1503-09, value 0.40 BTU/h·ft²·°F.
ASTM E 283-04, 0.26 cfm/ft².
ASTM E 574-00, 150 Pa (3.13 psf) - approved
ASTM E 330-14, 30.08 psf positive and negative
Sunny Lux is an option for entrances that call for a narrow aluminum frame, insulated glass and flexible swing configurations.
Share your opening dimensions, preferred swing direction and glazing requirements to discuss a door configuration for your project.
